Monobloc Air Source Heat Pump

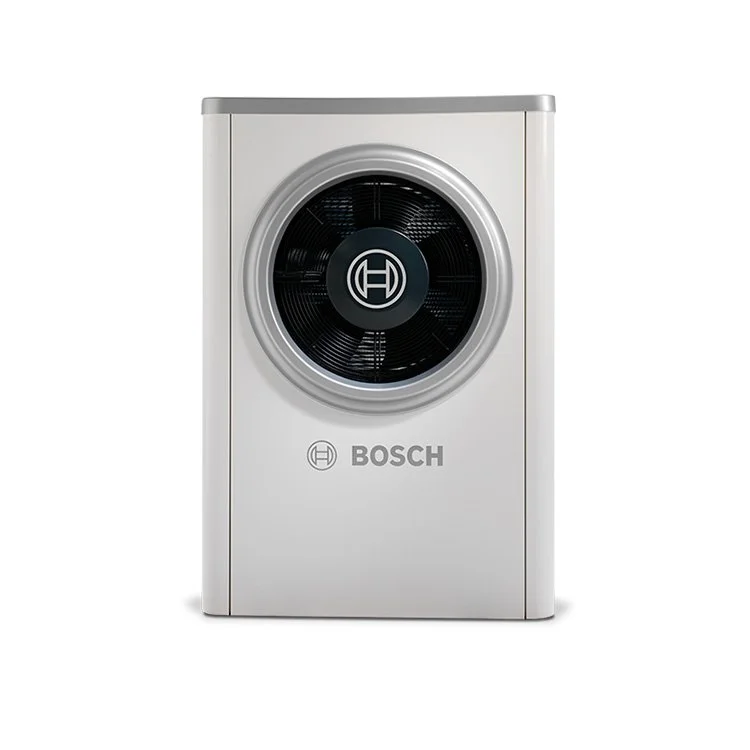

Bosch Air Source Heat Pump
The Worcester Bosch Compress 2000 AWF is a full monobloc air source heat pump, designed to simplify installation without compromising performance. All key components are housed within a single outdoor unit, including the pump, expansion vessel and heat exchanger, so there is no need for an indoor unit. This keeps installation clean and straightforward.
With single-phase outputs ranging from 4kW to 16kW, and three-phase options from 18kW to 30kW, the Compress 2000 AWF is suitable for a wide range of properties. Units can also be cascaded, with up to six connected for a combined output of 180kW, giving added flexibility for larger or more demanding projects.
No F-Gas qualification is required, making it a strong option for installers looking to get started with heat pumps.
Key Features
Why the Compress 2000
Flow Temperatures up to 65°C
Running on R32 refrigerant and hitting flow temps of up to 65°C, the Compress 2000 works well in new build properties or in projects with existing radiator systems.
7-Year Warranty
When purchased through Alto Energy, all Bosch heat pumps come with a 7-year warranty as standard.
Eligible for the Boiler Upgrade Scheme
The Compress 2000 is MCS-approved across the range, so your customers can apply for the Boiler Upgrade Scheme grant — making it an easier sell and a more affordable install.
Quick and Easy to Install
It's a full monobloc solution with a single outdoor unit and no indoor unit making installation fast and simple!
Flexible Outputs for Any Job
Single phase from 4–16kW, three phase from 18–30kW, and you can cascade up to six units for 180kW combined.
Easy to Service and Maintain
The pump, expansion vessel, and heat exchanger are all in the outdoor unit. Open the control box with a couple of screws and you've got everything you need right in front of you.
Product Range
All Units & Configurations
Small
- Outputs: 4 / 6 kW
- SCOP @ 35°C: 4.77
- Sound Level: 55 dBA
- Min. Temp: −25°C
- Phase: Single
- BUS Grant: Yes

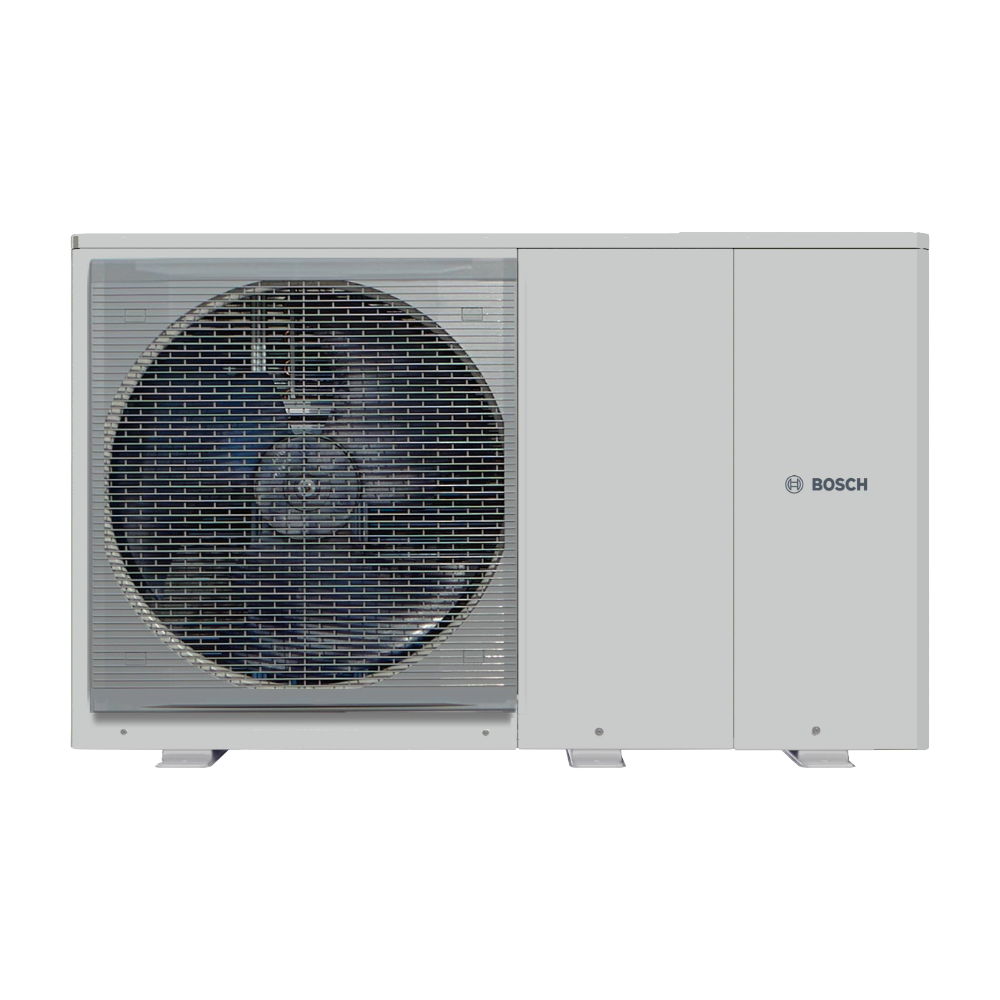

Medium
- Outputs: 8 / 10 / 12 / 14 / 16 kW
- SCOP @ 35°C: 5.03
- Sound Level: 59 dBA
- Min. Temp: −25°C
- Phase: Single
- BUS Grant: Yes

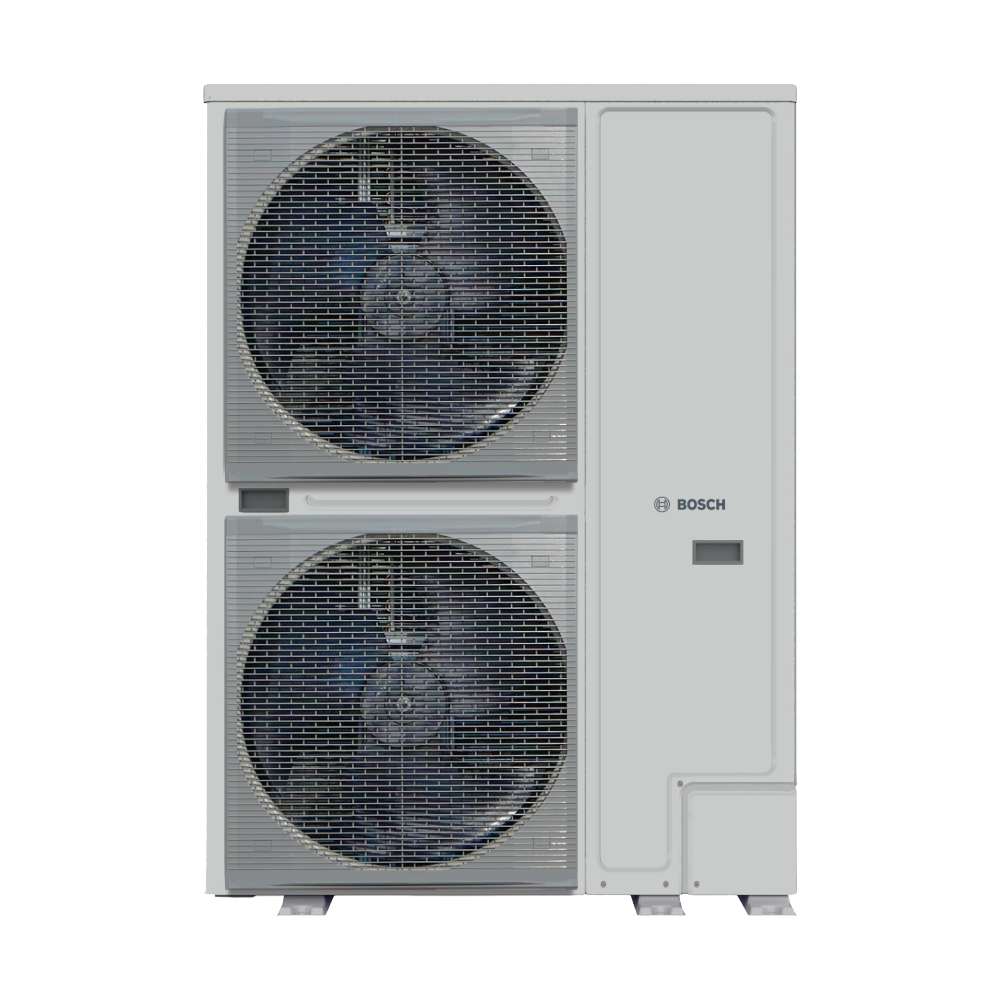

Large
- Outputs: 18 / 22 / 26 / 30 kW
- SCOP @ 35°C: 4.48
- Sound Level: 63 dBA
- Min. Temp: −25°C
- Phase: Three
- BUS Grant: Yes
