Ground Source Heat Pump

Viessmann Vitacol 200-G

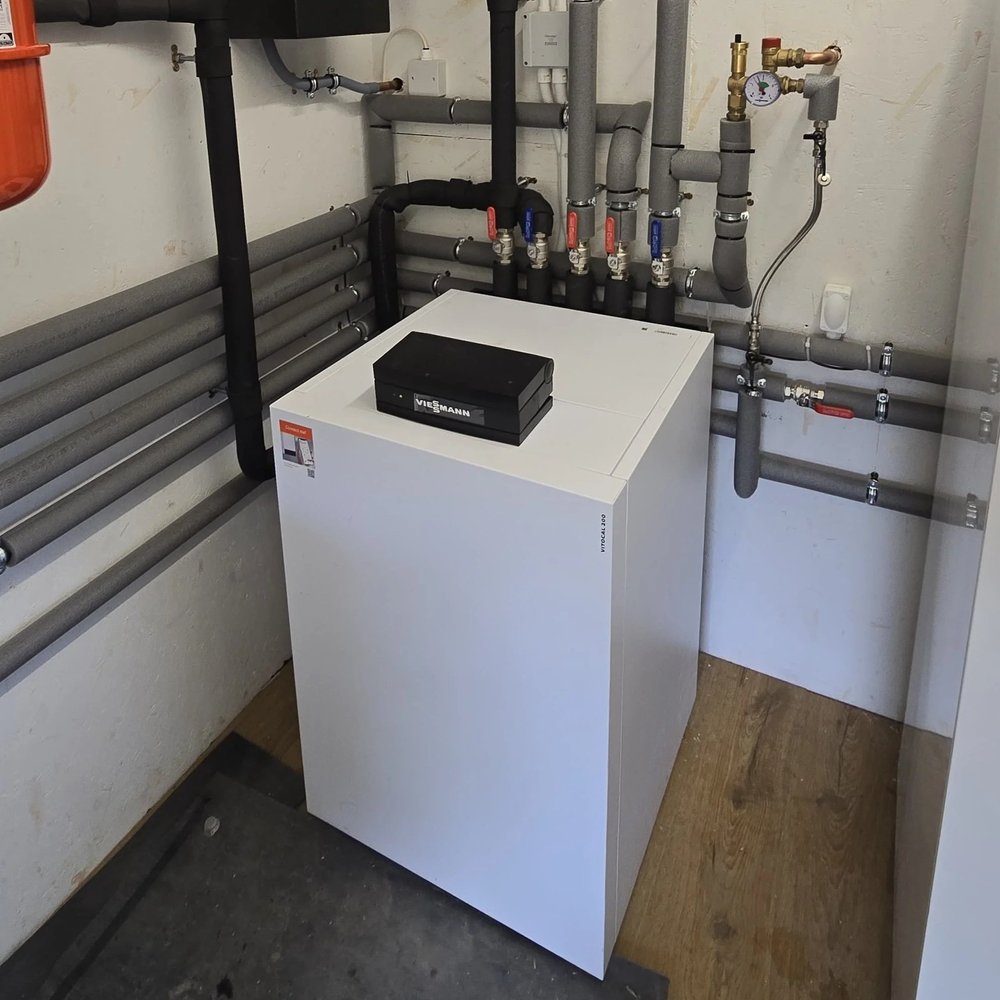

Viessmann Vitacol 200-G Ground Source Heat Pump installation
Output Range 6 to 17 kW
ERP Rating A+++
Best SCOP @ 35°C 5.34
Refrigerant R410A
Configuration Compact

The Viessmann Vitocal 200-G is a high-performance ground source heat pump designed to deliver efficient and reliable heating for a wide range of domestic properties. With its robust build and advanced technology, it offers consistent performance alongside exceptionally quiet operation.

Available in outputs from 6kW to 17kW across single and three-phase configurations, the Vitocal 200-G performs efficiently at both low and higher flow temperatures, making it suitable for underfloor heating as well as existing radiator systems in retrofit applications. Its flexible design allows for integration with separate domestic hot water cylinders, providing greater system versatility for a variety of installation requirements.

Ready to Get Started?

Our team is ready to help you with your next project.



Key Features

Why the Vitocal 200-G

Flow Temperatures up to 65°C

With flow temperatures reaching 65°C, the Vitocal 200-G works excellently in new build properties and is ideal for retrofit installations with existing radiator systems.

5-Year Warranty

When purchased through Alto Energy, the Viessmann Vitocal 200-G comes with a 5-year warranty as standard.

Boiler Upgrade Scheme Eligible

The Vitocal 200-G is approved for the Boiler Upgrade Scheme, qualifying customers for up to £7,500 off the cost and installation of their heat pump.

Compact Design & Easy Installation

Small footprint with integrated brine circulation pump, heating circuit pump and 3-way diverter valve makes installation simple and quick.

Quiet Operation

Sound power level of just 40 dB(A) with advanced sound insulation and anti-vibration mounts.

Control Through ViCare App

Control your heating system remotely with the ViCare app, allowing you to adjust settings, and manage your home’s comfort from anywhere using your smartphone.



Product Range

All Units & Configurations

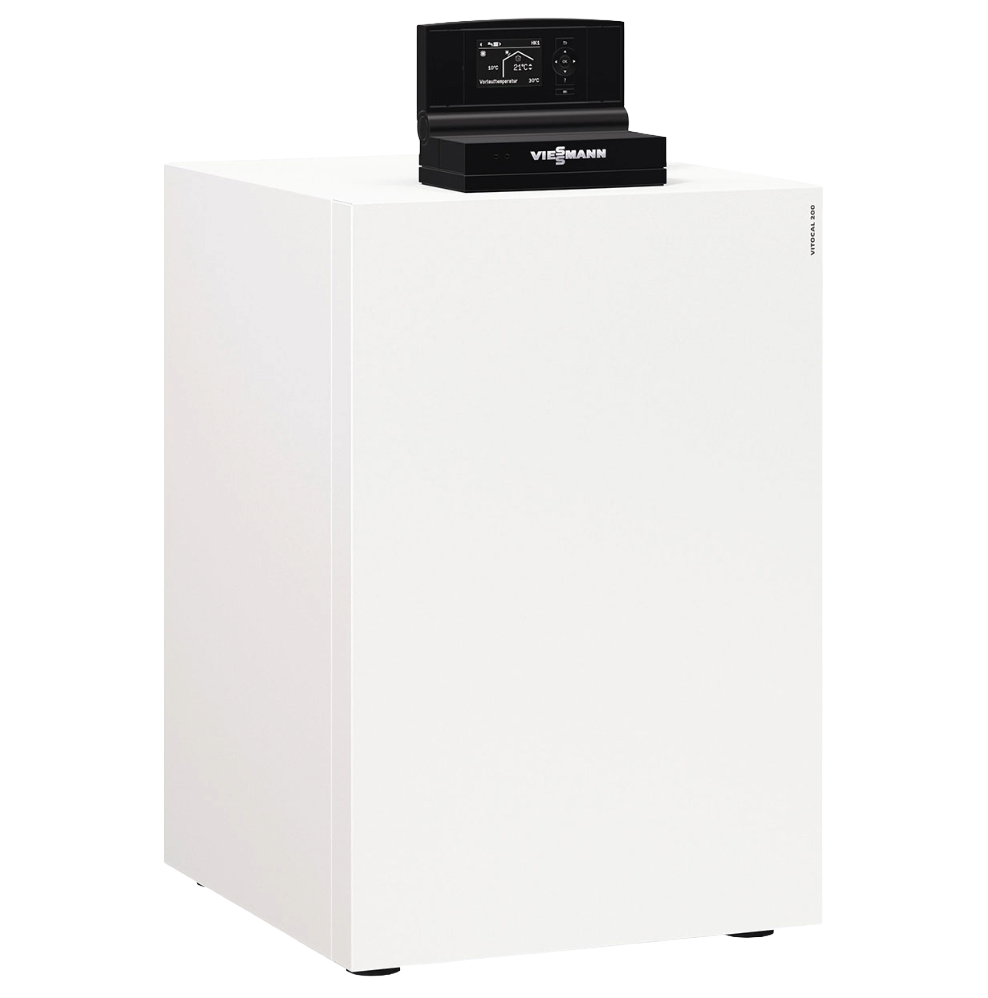

Viessmann Vitocal 200-G Ground Source Heat Pump
Viessmann Vitocal 200-G
Viessmann Vitocal 200-G Ground Source Heat Pump
  • Single Phase: 6 / 8 / 10 kW
  • Three Phase: 6 / 8 / 10 / 13 / 17 kW
  • ERP Rating: A+++
  • SCOP @ 35°C: 5.34
  • Sound Level: 40–47 dBA
  • Flow Temp: Up to 65°C
  • Refrigerant: R410A
  • BUS Grant: Yes

Not sure which unit is right for your project?

Our team will specify the right unit for your project and provide a full quote.
